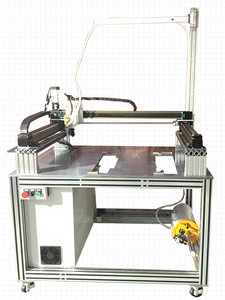

SC-FM2203
Scince
Advantages
Under the normal operation of the equipment, the production capacity per hour is about 40PCS.
Three axis assembly and relay control to realize automatic gluing.
The quantity and speed of dispensing, the dispensing and stopping time can be adjusted. Stable glue output, no glue leakage and dripping.
Main Components of the System
1. Glue injection station
Manual feeding, the transmission line moves to the glue filling station on the A side after the sensor senses the product, The product enters the glue filling station on the A side and automatically locates and performs the glue filling process.
2. Glue supply system
It is composed of barrel, outlet valve, fixed swing arm and other components.
3.Turn-over station
After the glue filling is completed, the product is automatically moved to the transfer line (persons need to place the product support), and when the product is moved to the turn-over station, the product is automatically positioned and turned over.
After the product is turned over, personnel need to place the product bracket to confirm and press the start (foot switch), and the product automatically enters the B-side glue filling station.
Technical parameters
Item | Parameter |
Operation method | Three-axis control handle |
Glue supply method | Cylinder push |
Bucket capacity | 2.6L, can be customized |
Gue flow | 0.2~5g\/s, adjustable |
