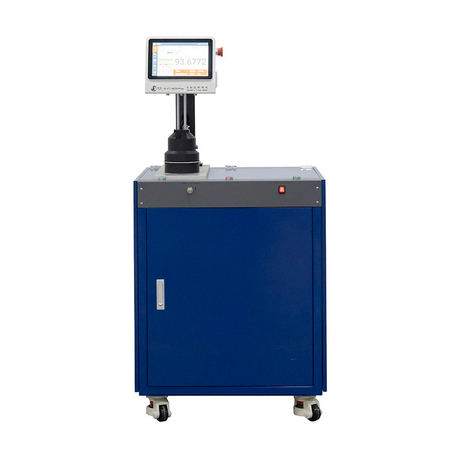

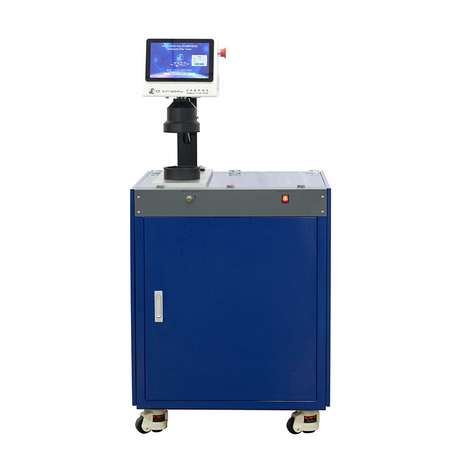

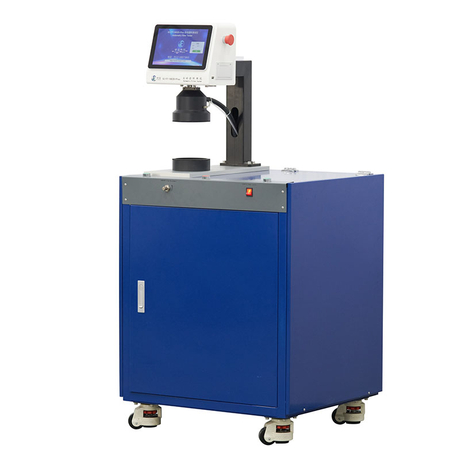

Specially designed for plane mask manufacturer. Used to test filter efficiency, resistance, △P (differential pressure).
According to GB 2626—2019, GB 19083, YY 0469, YY/T 0969, NIOSH 42 CFR 84and EN 149.
Press two buttons to start at the same time, test program will run automatically.
Flow is adjustable manually to test flow under different standards.
Touch screen is designed with human-computer interaction, visually displayed.
Calibrated with standard filter paper, the test result can be compared with TSI 8130.
Clean air source system is needed to ensure the air dry and clean.
Built—in printer, the result can be printed directly.
If data acquisition software is selected, the reports can be printed with A4 paper, and remote calibration is available.
Simple operation, no special requirement for operator. Low cost for maintenance.
Applications
Filter efficiency test for filter material and mask.
Resistance test for filter material and mask.
△P (differential pressure) test for medical face mask.
Technical Parameters
Application | Filter Efficiency and Resistance Test |
Test Flow | 0~99.9L/Min |
Test Aerosol | Nacl and Paraffin Oil |
Test Area | 100cm² |
Resistance Range | 0~500PA |
Test Period | 30s |
Power supply | AC 220V, 50 or 60 HZ |
Dimensions | 740*740*1480mm |
