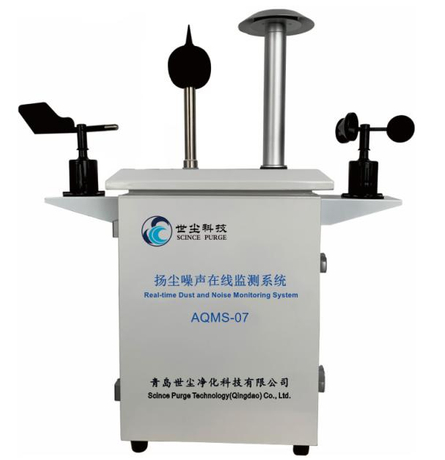

This product can realize 24-hour long-time continuous automatic monitoring with high accuracy. Integrated structure, easy to install, strong and durable, and long outdoor running life.
Advantages
Optical particle size cutting can monitor PM1.0, PM2.5, PM10.0 and TSP simultaneously.
It has sheath gas protection and gas path protection functions.
Increase flow feedback, realize constant current control, ensure the stability of sampling quantity and improve accuracy.
Dynamic dehumidification, PID temperature precise control and heating dehumidification ensure data accuracy.
The data is stable, and it has automatic zero calibration and wide-span calibration devices and functions.
Data transmission through 4G, 5G, RS232, and RS485 etc.
If the network is disconnected for continuous transmission, the offline data can be automatically continuously transmitted to the monitoring platform.
Easy installation, maintenance, and disassembly.
Applications
Construction sites, industrial and mining enterprises, stockyards and docks, etc.
Technical Parameters
Monitoring parameters | PM1.0、PM2.5、PM10.0、TSP |
Concentration range | 0-30（mg/m³） |
Monitoring accuracy | 0.1（μg/m³) |
Sampling period | 6-9999 seconds (default 60s) |
Operational environment | Atmosphere, factory boundary |
Communication method | RS232/RS485 |
Storage capacity | > 530,000 articles |
Power supply source | AC 220V |
Maximum power | 48W |
Dimension | 800mm*260mm*600 mm |
Whole machine weight | 12kg |
