Laboratory Accessories for Air Filter Testing

Accessories supporting ISO 16890 conditioning and gravimetric workflows, together with manual leak-scanning applications for high-efficiency filters.

Accessories That Expand Your Testing Capabilities

Optional accessories designed to extend existing testing systems for additional standards, specialized applications, and improved workflow efficiency.

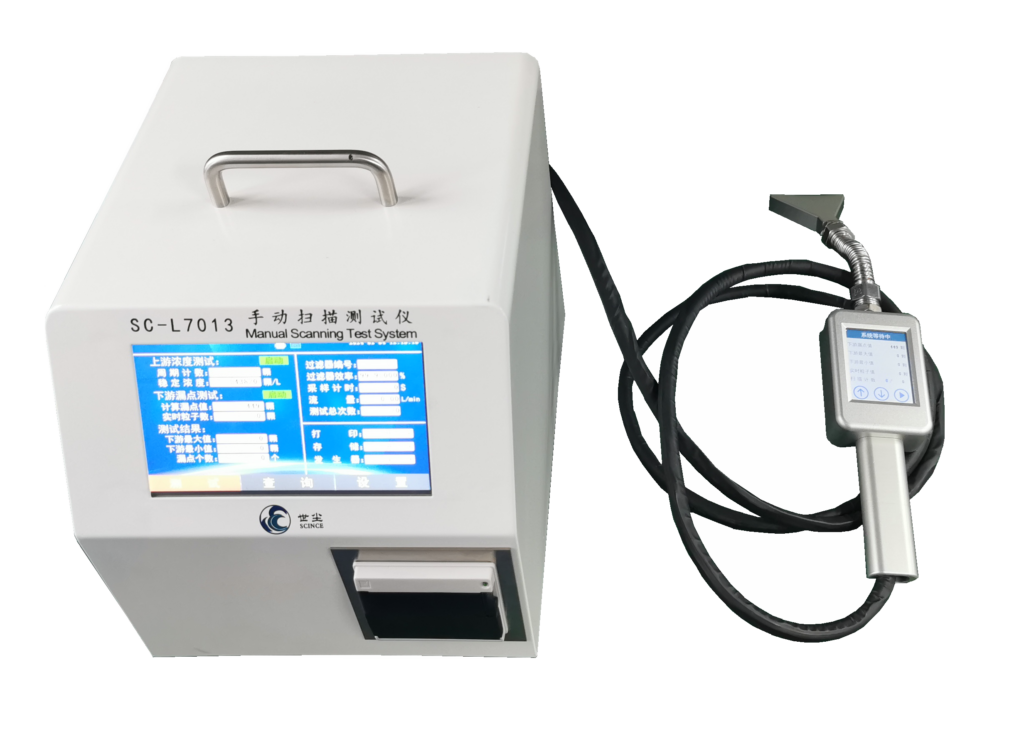

SC-L7013 マニュアルスキャンテストシステム

SC-L7013 マニュアルスキャンテストシステム is designed for manual leak detection of air filters using particle-counting methods. With suitable fixed ducts, the system can be used to scan panel filters and V-bank filters, while special-shaped filters such as cylindrical and triangular filters can also be manually scanned for leakage detection.

ハイライト

Manual scanning leak detection for air filters

Suitable for panel filters and V-bank filters with fixed test ducts

Supports full scanning of filter surfaces and borders

Scanning handle displays leakage value and current particle count

Visual alarm when a leak is detected

SC-W161 計量乾燥キャビネット

SC-W161 Weighing Cabinet is designed for air filter weighing, temporary storage, and natural drying during filter performance and dust-loading tests. The system incorporates an electronic weighing unit and an adjustable suspension structure, allowing different types of air filters to be weighed in a stable and enclosed environment.

ハイライト

Integrated air filter weighing and drying functions

Supports bag filters, W型フィルター, panel filters and cylindrical filters

Adjustable suspension system for different filter configurations

Separate Scale and Drying operating modes

Suspension system is unloaded from the weighing structure during drying

Internal air circulation for natural drying

Temperature and humidity monitoring and data recording

SC-190 フィルターコンディショニングキャビネット

SC-190 フィルターコンディショニングキャビネット is designed for conditioning air filters with saturated isopropyl alcohol (IPA) vapor in accordance with ISO 16890-4. It provides a controlled conditioning environment for evaluating the filtration performance of electrostatically charged air filters after IPA treatment.

ハイライト

Designed for filter conditioning in accordance with ISO 16890-4

Provides stable saturated IPA vapor for filter conditioning

Negative-pressure exhaust helps control IPA vapor during operation

Programmable IPA diffusion, conditioning and flushing times

Audible and visual alarms for timed test stages

Automatic chamber exhaust after conditioning

Real-time monitoring of temperature, humidity and atmospheric pressure

スライドを表示中 1 の 3: SC-L7013 マニュアルスキャンテストシステム

テストワークフローの完了

SCPUR アクセサリは主要な試験システムと連携して、IPA コンディショニングや手動検証から精密計量や自動データ統合まで、標準化された試験手順を完了します。.

Standards Upgrade

Add ISO 16890 IPA conditioning capability to existing or legacy filter testing systems.

Typical Module: SC-190

Workflow Efficiency

Simplify weighing and drying of large filters and reduce manual data recording.

Typical Module: SC-W161

Inspection Expansion

Extend leak inspection to HEPA / ULPA, oversized, circular, and non-standard filters.

Typical Module: SC-L7013

Selecting the Right Accessory

SCPUR can evaluate whether the required function can be added to an existing system or requires a separate test platform.

SC-190

既存のシステムをアップグレードする

EN779からISOへアップグレードするお客様へ 16890 完全なテストシステムを交換することなく.

SC-L7013

リークテスト機能の拡張

サイズが大きいフィルター用の手動ダウンストリームスキャンを追加する, 非標準の形状, 修理検証, そしてプロトタイプの検証.

SC-W161

重量試験の改善

手動によるデータ記録を減らしながら、大型フィルターの計量と乾燥手順を簡素化します。.
