Laboratory Accessories for Air Filter Testing

Accessories supporting ISO 16890 conditioning and gravimetric workflows, together with manual leak-scanning applications for high-efficiency filters.

Accessories That Expand Your Testing Capabilities

Optional accessories designed to extend existing testing systems for additional standards, specialized applications, and improved workflow efficiency.

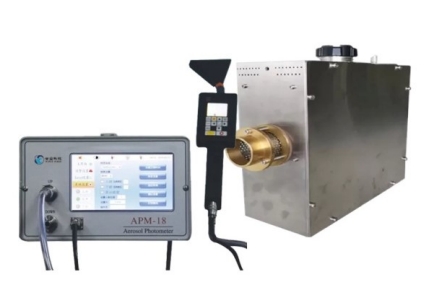

SC-L7013 Manual Scanning Test System

SC-L7013 Manual Scanning Test System is designed for manual leak detection of air filters using particle-counting methods. With suitable fixed ducts, the system can be used to scan panel filters and V-bank filters, while special-shaped filters such as cylindrical and triangular filters can also be manually scanned for leakage detection.

Destaques

Manual scanning leak detection for air filters

Suitable for panel filters and V-bank filters with fixed test ducts

Supports full scanning of filter surfaces and borders

Scanning handle displays leakage value and current particle count

Visual alarm when a leak is detected

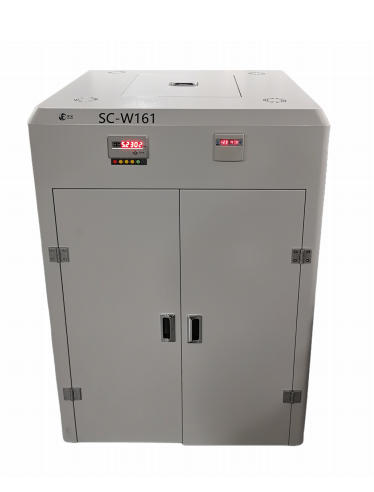

SC-W161 Weighing and Drying Cabinet

SC-W161 Weighing Cabinet is designed for air filter weighing, temporary storage, and natural drying during filter performance and dust-loading tests. The system incorporates an electronic weighing unit and an adjustable suspension structure, allowing different types of air filters to be weighed in a stable and enclosed environment.

Destaques

Integrated air filter weighing and drying functions

Supports bag filters, Filtros tipo W, panel filters and cylindrical filters

Adjustable suspension system for different filter configurations

Separate Scale and Drying operating modes

Suspension system is unloaded from the weighing structure during drying

Internal air circulation for natural drying

Temperature and humidity monitoring and data recording

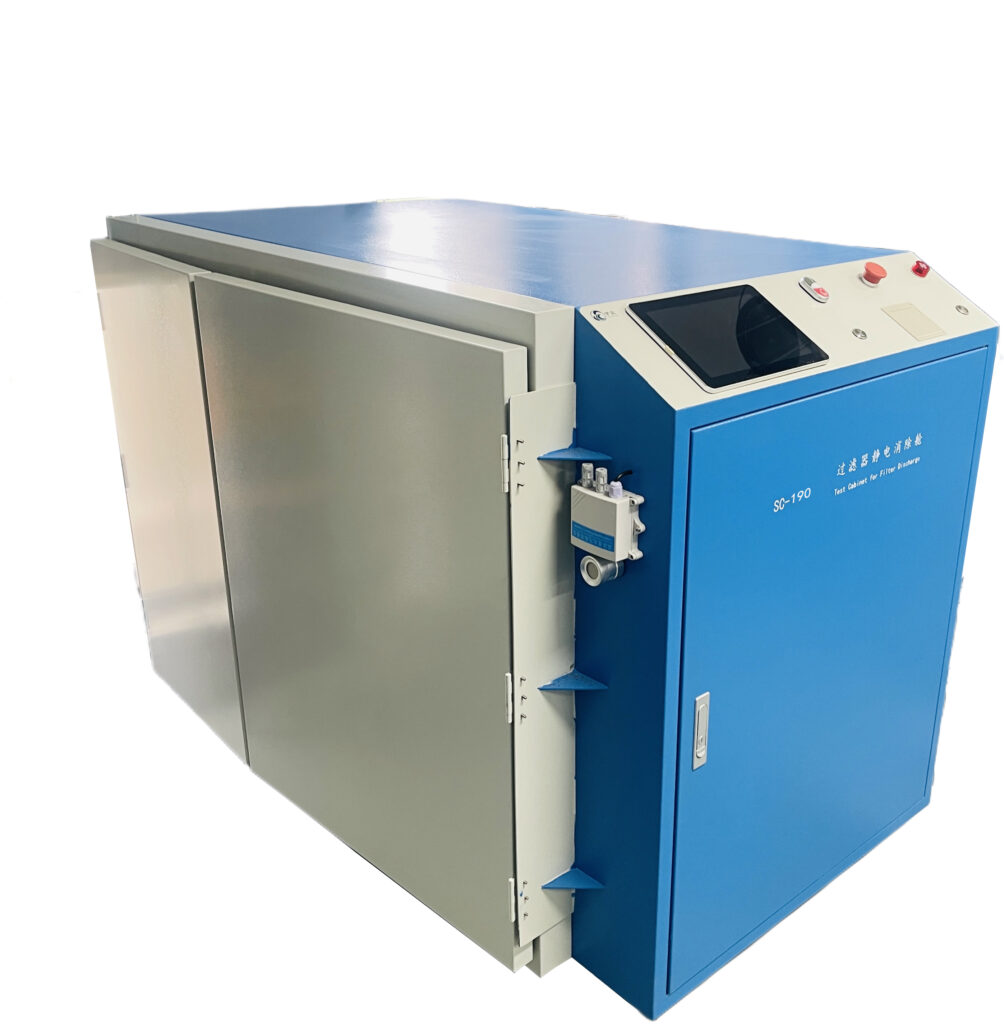

SC-190 Filter Conditioning Cabinet

SC-190 Filter Conditioning Cabinet is designed for conditioning air filters with saturated isopropyl alcohol (IPA) vapor in accordance with ISO 16890-4. It provides a controlled conditioning environment for evaluating the filtration performance of electrostatically charged air filters after IPA treatment.

Destaques

Designed for filter conditioning in accordance with ISO 16890-4

Provides stable saturated IPA vapor for filter conditioning

Negative-pressure exhaust helps control IPA vapor during operation

Programmable IPA diffusion, conditioning and flushing times

Audible and visual alarms for timed test stages

Automatic chamber exhaust after conditioning

Real-time monitoring of temperature, humidity and atmospheric pressure

Mostrando slide 1 de 3: SC-L7013 Manual Scanning Test System

Concluindo o fluxo de trabalho de teste

Os acessórios SCPUR trabalham em conjunto com os principais sistemas de teste para completar procedimentos de teste padronizados – desde condicionamento IPA e verificação manual até pesagem de precisão e integração automatizada de dados.

Standards Upgrade

Add ISO 16890 IPA conditioning capability to existing or legacy filter testing systems.

Typical Module: SC-190

Workflow Efficiency

Simplify weighing and drying of large filters and reduce manual data recording.

Typical Module: SC-W161

Inspection Expansion

Extend leak inspection to HEPA / ULPA, oversized, circular, and non-standard filters.

Typical Module: SC-L7013

Selecting the Right Accessory

SCPUR can evaluate whether the required function can be added to an existing system or requires a separate test platform.

SC-190

Atualizar sistemas existentes

Para clientes que atualizam de EN779 para ISO 16890 sem substituir o sistema de teste completo.

SC-L7013

Expanda a capacidade de teste de vazamento

Adicionar verificação downstream manual para filtros superdimensionados, geometrias não padronizadas, verificação de reparo, e validação de protótipo.

SC-W161

Melhore os testes gravimétricos

Simplifique os procedimentos de pesagem e secagem para filtros grandes e reduza o registro manual de dados.
