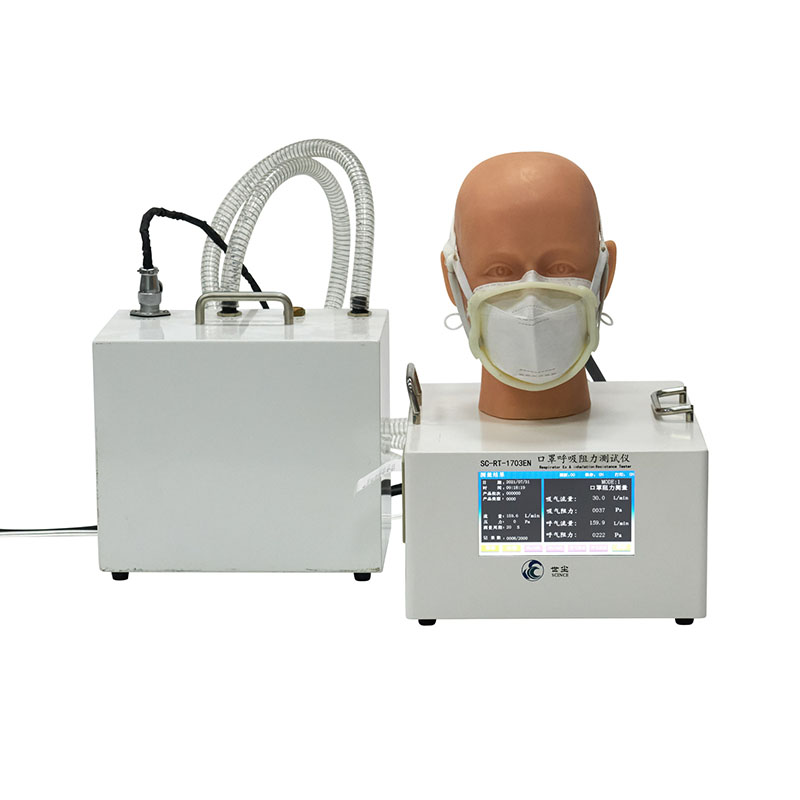

Portable Respirator Ex Inhalation Resistance Mask Tester SC-RT-1703EN

This equipment is used to test exhalation and inhalation resistance of masks. According to the different standards, the models are divided into SC-RT-1703GB, SC-RT-1703KR and SC-RT-1703EN.
Availability:
Quantity:
facebook sharing button
twitter sharing button
line sharing button
wechat sharing button
linkedin sharing button
pinterest sharing button
sharethis sharing button
  • Scince

According to

1.SC-RT-1703GB

GB standard adult head mold and child head mold can be selected according to test requirement.

According to:

1)GB 2626-2019, test flow at 85L/min.

2)GB/T 38880-2020, test flow at 45L/min.

3)NIOSH 42CFR84, test flow at 85L/min.

2.SC-RT-1703KR

Configured with Sheffield dummy head, inhalation and exhalation at 30L/min, according to Korea heath care mask standard.

3.SC-RT-1703EN

Configured with Sheffield dummy head and head support frame, the respirator can be tested in five different directions: upper, lower, left, right and upright.

Comply with the test requirements of EN149.

4 modes of rapid test:

1)Inhalation and exhalation resistance at 30/160(L/min).

2)Inhalation and exhalation resistance at 95/160(L/min).

3)Inhalation resistance at 30/95(L/min).

4)Exhalation resistance at 160(L/min).


Advantages

After wearing the mask, press the test button and the test will be performed automatically, the test result can be directly displayed and printed.

The touch screen can visually display test results, system status information and operating parameters, greatly reducing the amount of training for the user and improving work efficiency.

Due to the simplicity of operation and maintenance and low maintenance costs, this instrument is suitable for the quality control of mask factory products.


Technical Parameters

SC-RT-1703GB

1. Flow meter range: 30~95L/min   Accuracy: 2.5%

2. Pressure gauge range: 0~500pa   Accuracy: 1%

3. GB adult and children dummy head

SC-RT-1703KR

1.Flow meter range: 30~95L/min   Accuracy:2.5%

2.Pressure gauge range: 0~500pa   Accuracy: 1%

3.Sheffield dummy head

SC-RT-1703EN

1.Flow meter range: 30~160L/min   Accuracy: 2.5%

2.Pressure gauge range: 0~500pa   Accuracy: 1%

3.Sheffield dummy head


Environment requirements

Power supply:AC220V 50/60Hz

Power:150W

Temperature:(23±5)℃

Humidity:20-75%
