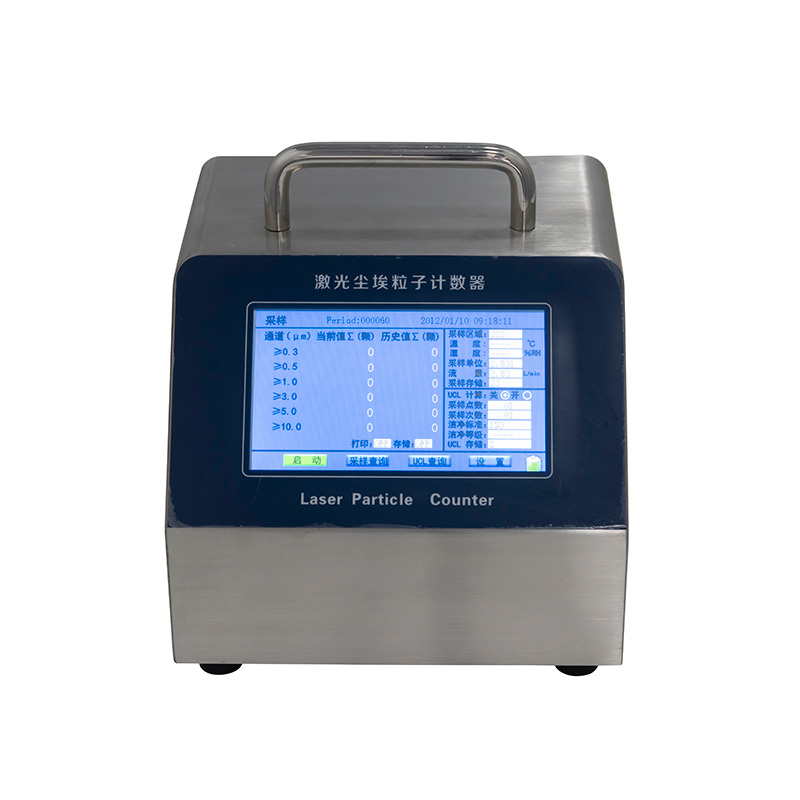

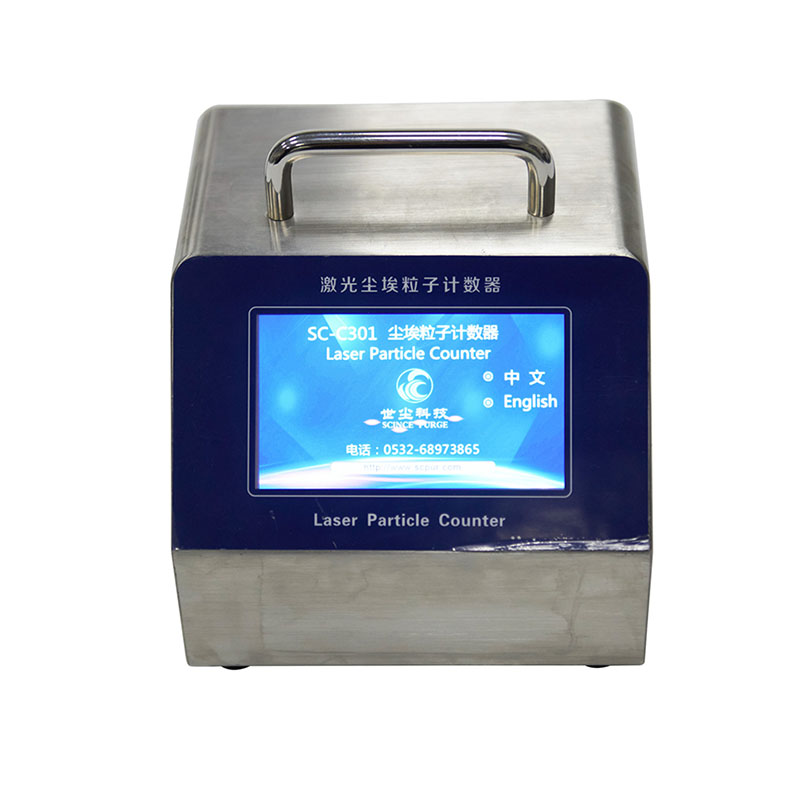

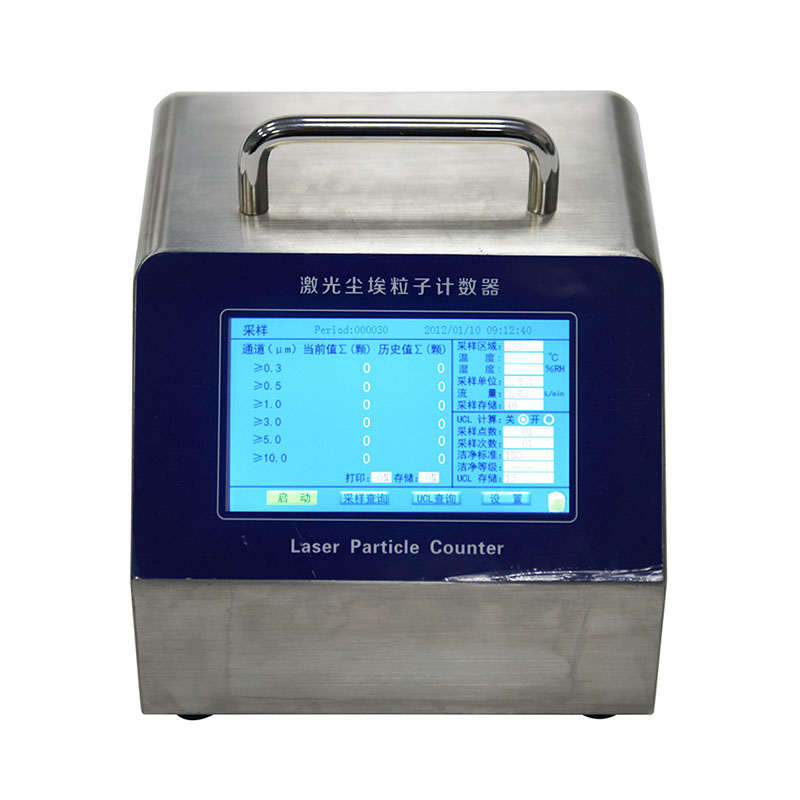

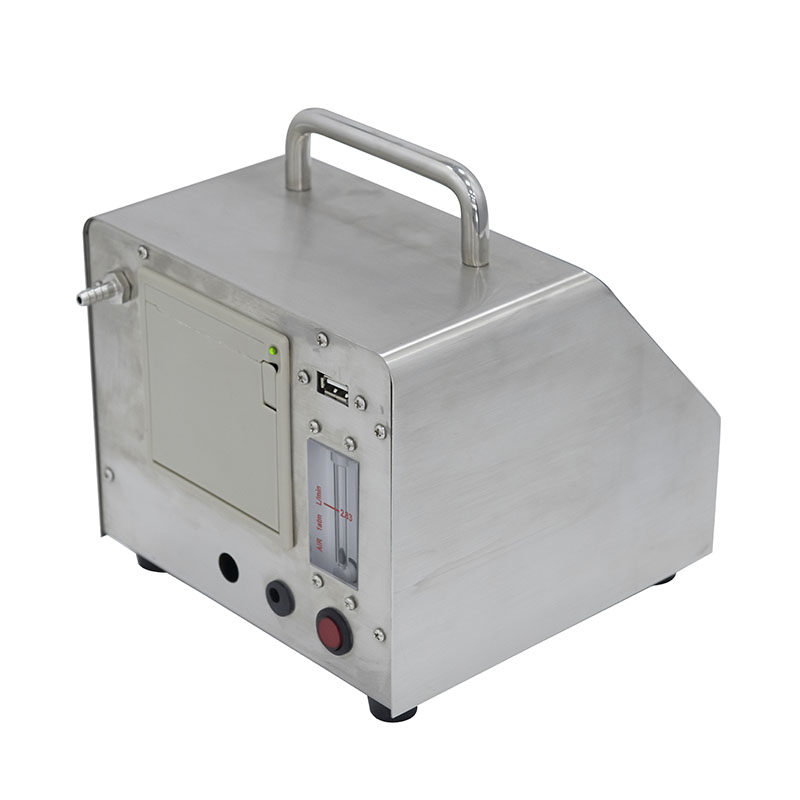

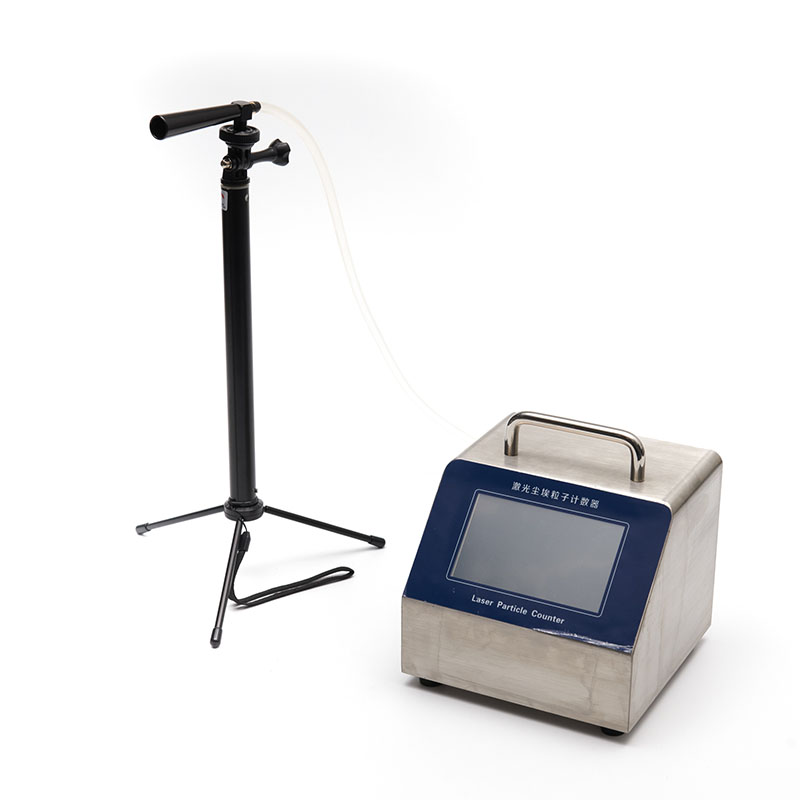

Particle Counter SC-C301

SC-C301/C310 laser particle counter is used to measure the number and particle size distribution of dust particles per unit volume in clean environment, with the maximum sampling concentration of 35000 particles /L.

Quantity:
Availability:





Inquire Add to Basket

Model:
SC-C301
Brand:
Scince

Product Description

Product description
The basic principle of SC-C310 laser particle counter is the detection of optical sensor. After scattering by particles, the laser is received by photosensitive element and generates pulse signal. The pulse signal is output and amplified, and then digital signal processing is carried out. By comparing with standard particle signal, the comparison result is expressed with different parameters.

Applications
It is used to measure the number and size distribution of dust particles per unit volume in clean environment.

Technical Parameters

Item	Parameter
Sampling flow	28.3L/min ±5%
Particle size grading	0.3μm,0.5μm,1μm,3μm,5μm,10μm
Verification standard	GB/T6167-2007,JJF1190-2008
Maximum sampling concentration	35000 / L
Dimension	170mm170mm160mm
