SC-FT-1406DU-Pro series Automatic Filter Tester

Upgraded Pro system with more powerful functions
Availability:
Quantity:
facebook sharing button
twitter sharing button
line sharing button
wechat sharing button
linkedin sharing button
pinterest sharing button
sharethis sharing button
  • Scince

Features

  • Particle counters as detectors

  • Remote trouble shooting and calibration are realised.

  • Highly automated. No need to manually adjust the test concentration.

  • switch the test aerosol.

  • Strong data storage and processing capability.


According to

NIOSH 42 CFR Part 84, EN 149,ASTM F2100-3.1.4, EN 14683:2005 etc.


Applications

Filtration eficiency and resistance test for filter media, mask (respirator) and small filter element.

Quality control and materials inspection for filter media, mask and filter manufacturers.

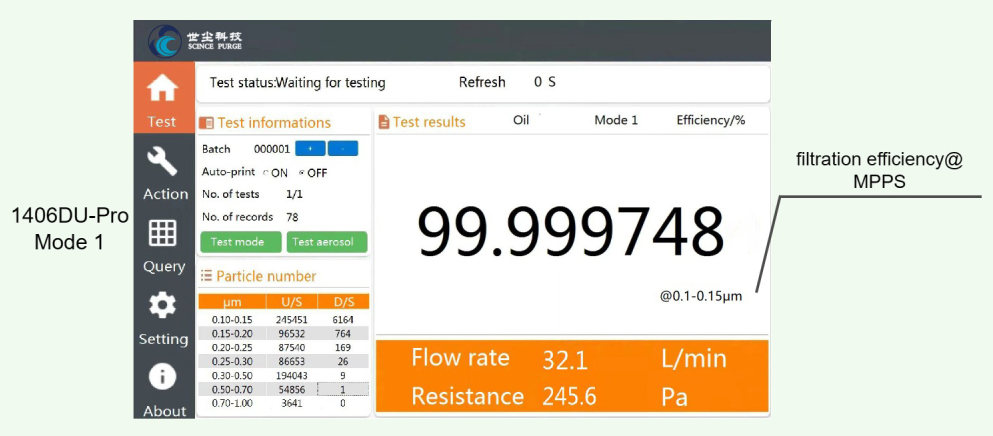

mask tester

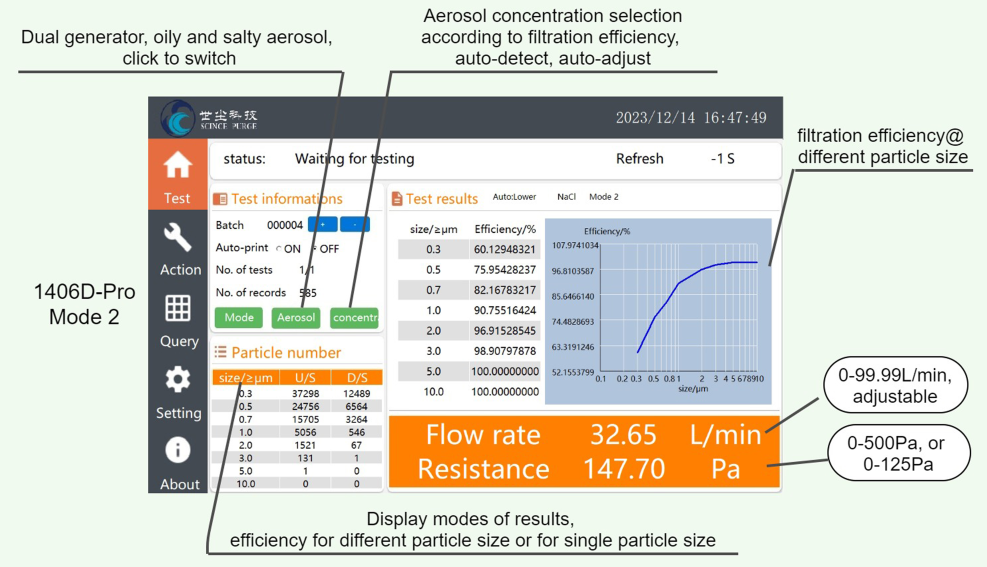

Interface and software

mask tester

mask tester

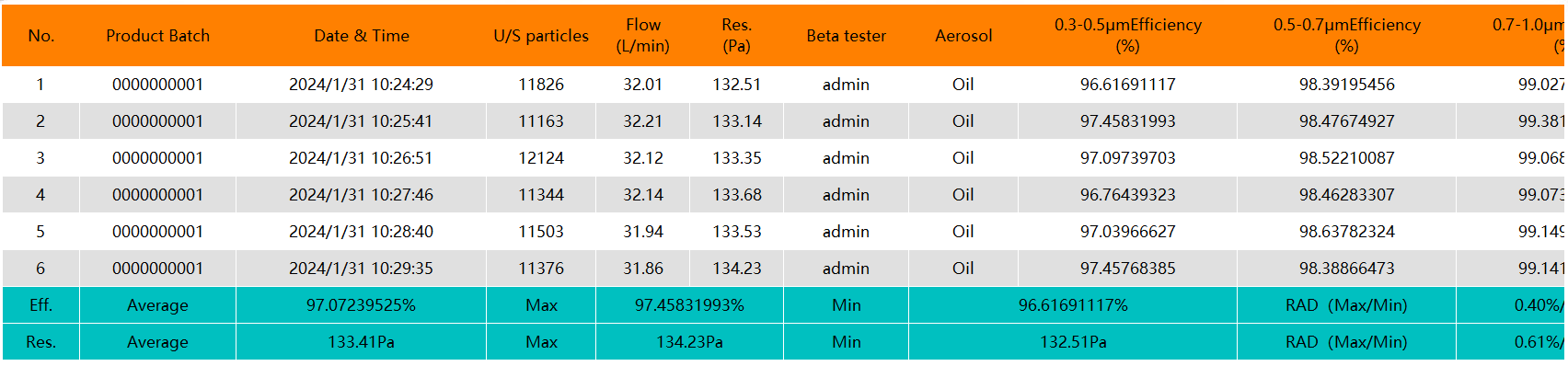

Data analysis

Users can select batches from the database and the system will automatically generate test results for theaverage,maximum, minimum, and deviation.


mask tester

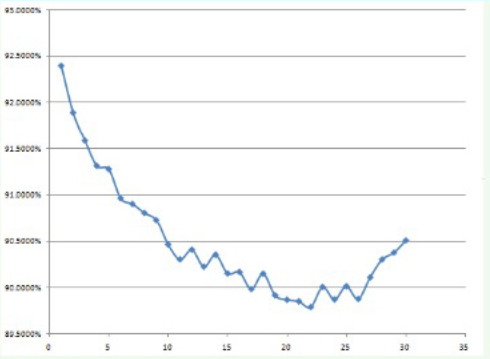

Load test for mask(1406D-Pro+)

Modify the test cycle--Turn on high concentrationgenerator--Start test--Stop test after load quantityor time is qualified--Draw a curve according totest results

load tesr for mask


Technical parameters

Test flow: 0-99.9L/min, ±2% F·S

Test area: 100cm2

Test resistance: 0-500Pa Optional (0-125Pa) ±1% F·S

Test period: 45S, adjustable

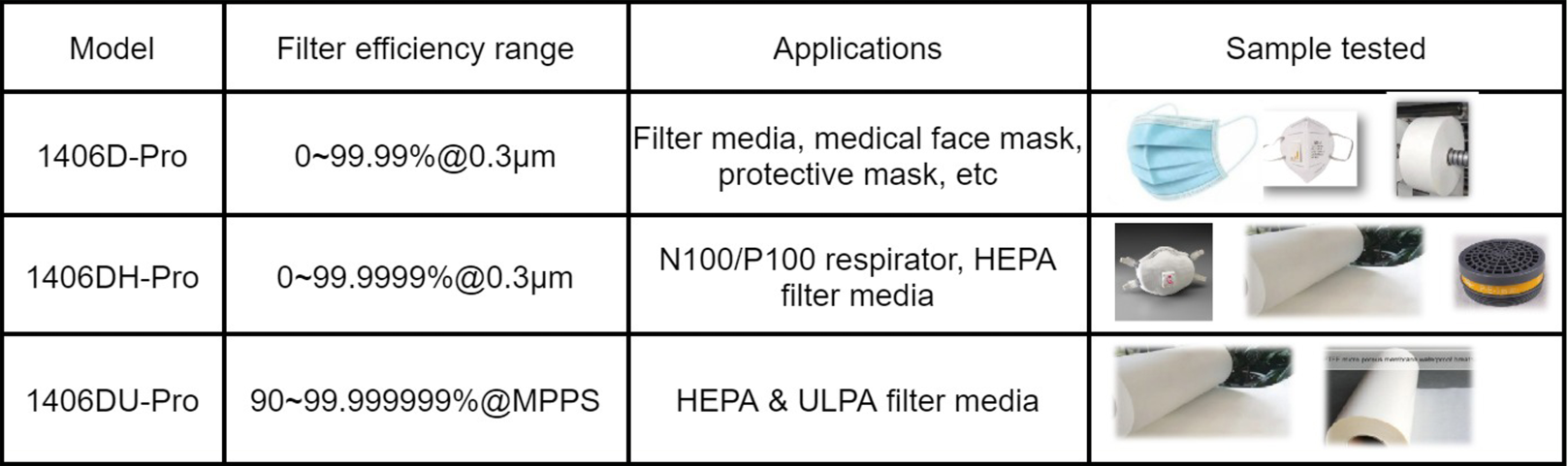

Particle counter:

D-Pro, 0.3,0.5, 0.7, 1.0, 2.0, 3.0μm, etc;

DH-Pro, U/S 0.3, 0.5, 0.7, 1.0, 2.0μm, etc,

              D/S 0.2, 0.3, 0.5μm, etc;

DU-Pro, 0.1, 0.15, 0.2, 0.25, 0.3, 0.5, 0.7, 1.0μm

Test aerosol: NaCl or KCL, DEHS or Oil.

Dimensions( L×W×H ): 750mm×750mm×1500mm

Environment requirements

Temperature: (23±5)°C

Power supply: 220 V AC, 50Hz or 60Hz, 1000W

Air compression: >0.5 MPa 160L/min


Clean air source system(optional)

Air compressor: air storage capacity 160L,

                          pressure 0.7MPa,

                          exhaust volume 520L / min,

                          Voltage 380V or 220V,

                          power 6kw

High precision filter: treatment capacity≥ 1m3 / min,

                                 pressure≤ 0.8MPa

Freeze dryer: treatment capacity≥ 1 m3 / min,

                      pressure≤ 1 MPa,

                      voltage 220 v

Pressure reducing valve: pressure ≤ 1MPa,

                                         pressure regulating range 0.5-0.9mpa
