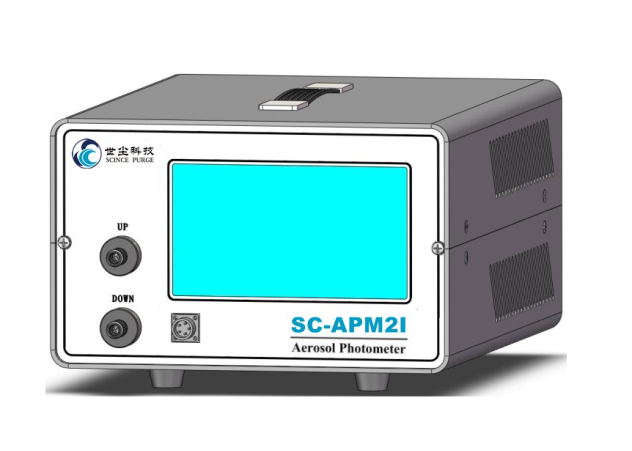

SC-APM2I photometer is a linear digital photometer, which uses the principle of light scattering method to detect aerosol concentration. It can be used to test the integrity and leakage rate of high-efficiency filters and ultra-high-efficiency filters.
| Quantity: | |
|---|---|
SC-APM2I
Scince
According to
NSF 49
United States standard IEST
ISO 14644
Advantages
Imported air pump and light source are adopted, and the data is reliable and stable.
Android system is adopted, which has stable system and fast response speed.
7-inch color touch screen makes data display more intuitive.
The menu and interface are simple and clear, and the operation is convenient and quick.
There are three data reporting modes, and the data output adopts wireless printer and USB.
The equipment is small and portable.
Application
Used in pharmaceutical, electronic industry, medical operating room, clean room, biosafety cabinet, clean workbench, food processing and other fields.
Used to test the integrity and leakage rate of high-efficiency filters.
Technical Parameters
Test range | Up to 600 μ g/l |
Aerosol | PAO-4, DOP and paraffin oil, etc |
Automatic clearing | Automatically establish zero value at startup |
Sensitivity | 1% of the display value |
Repeatability | 0.5% of the displayed value |
Light source | Long life solid-state LED |
Alarm | If the leakage value exceeds the set point, an alarm will be issued |
Report | Three modes: summary report mode, continuous mode and real-time mode |
Output | Thermal printer, USB |
Power Supply | 220V AC，50/60Hz |
Weight | 10kg |
Size | 360×260×160mm |
